Fuel for Thought

Pulling Pallets

A solution in work for moving heavy pallets without assistance is related to this topic that comes up from time to time. I have now verified that I can move a 1600 pound pallet to the rear of the van by myself for the two customers out of a thousand who refuse to use my 12,000 pound-test recovery strap. I’m not volunteering this as a solution to my carrier until I can show that I can move the van’s entire cargo capacity by myself.

My objective is to have the smallest amount of equipment on board with the fewest, single purpose, once in a lifetime use tools—like a chain that the one customer in a thousand wants. This setup uses equipment that I use with every load. To go over 2000 pounds, I may have to rig something that resembles a block and tackle version of a load strap. I’ll post that solution if I get to it.

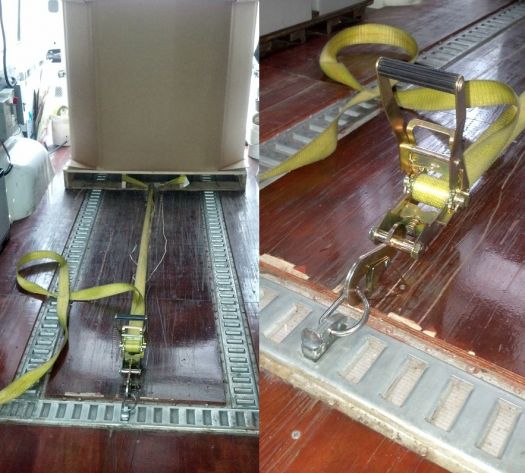

For the pallet anchor point, I normally loop the strap around the center board of the pallet. The photos show the setup as a whole and other ways I anchor the strap on pallets without a center post. I can pull the pallet 14-18 inches before I need to release and recinch the load strap. The photos show the arrangement for pulling a pallet towards the front of the van. I have a similar cross piece of e-track at the rear door to pull freight out.

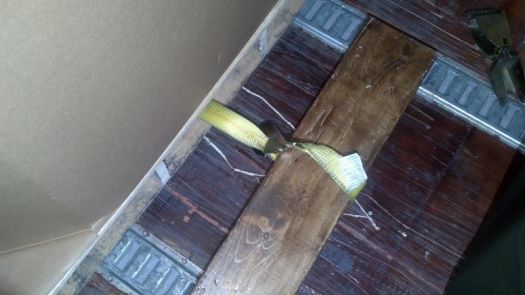

In the bottom photo any board will do, but I usually use the board that sets in the wood beam, e-track sockets that block the pallet in transit. I pass the strap under the center of the pallet, loop the strap around the board and pull it tight against the back of the pallet. And then just ratchet away.

eb
